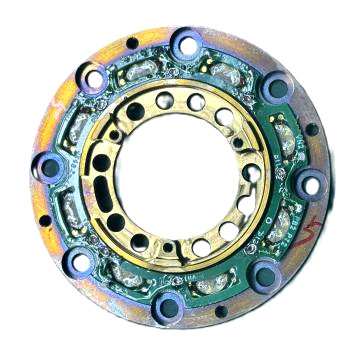

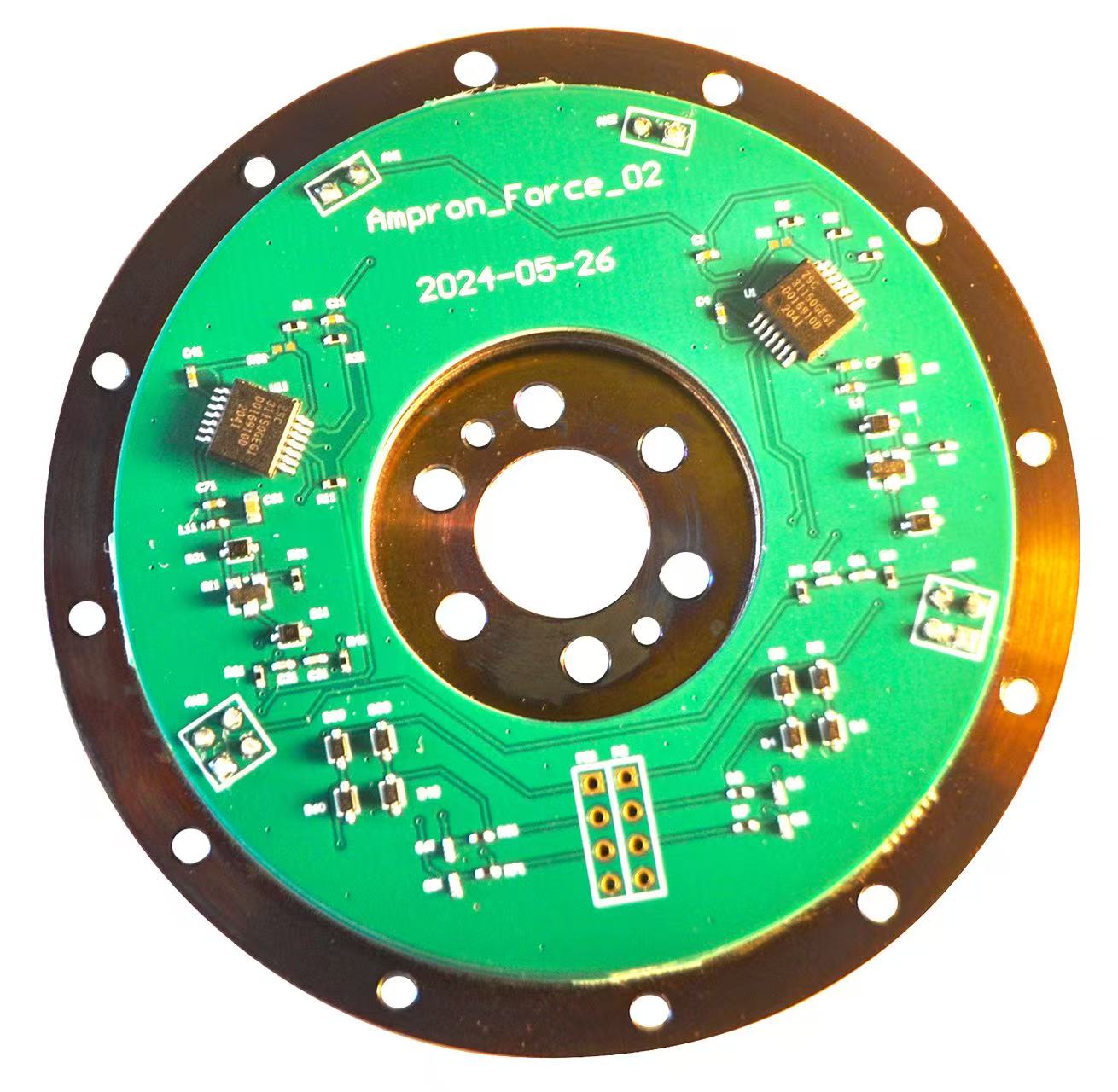

Torque Sensor used for humanoid robots
Torque Sensor used for humanoid robots
Unit Price
ask for a quote below
Contact form
Produce Feature：
Adopting the high-precision resistance strain gauge principle
After compensation for high and low temperatures,the temperature characteristics are excellent
High precision and strong long-term stability
High torsional stiffness and strong overload resistance capability
Can be used for torque detection of the joints of humanoid robots
Accept customized specifications
|
Technical Specification |
|||
|
Non-linearity |
±0.3%F.S. |
Safe Overload |
300%F.S. |
|
Repeatability |
±0.1%F.S. |
Sampling Frequency |
8/16KHz customizable |
|
TC Zero |
±0.2%F.S. |
Resolution |
0.01%F.S |
|
TC Span |
±0.25%F.S. |
Communication Interface |
RS485 |
|
Overall accuracy |
±1%F.S. |
Level Of Protection |
IP65 |
|
Supply Voltage |
5VDC |
Insulation Resistance |
≥100MΩ/50VDC |
|
Calibration Temp Range |
-10-60℃ |
Material |
stainless steel |
|
Operating Temp Range |
-20-85℃ |
Measurement range |
80N·m 3.7N·m 220N·m |
