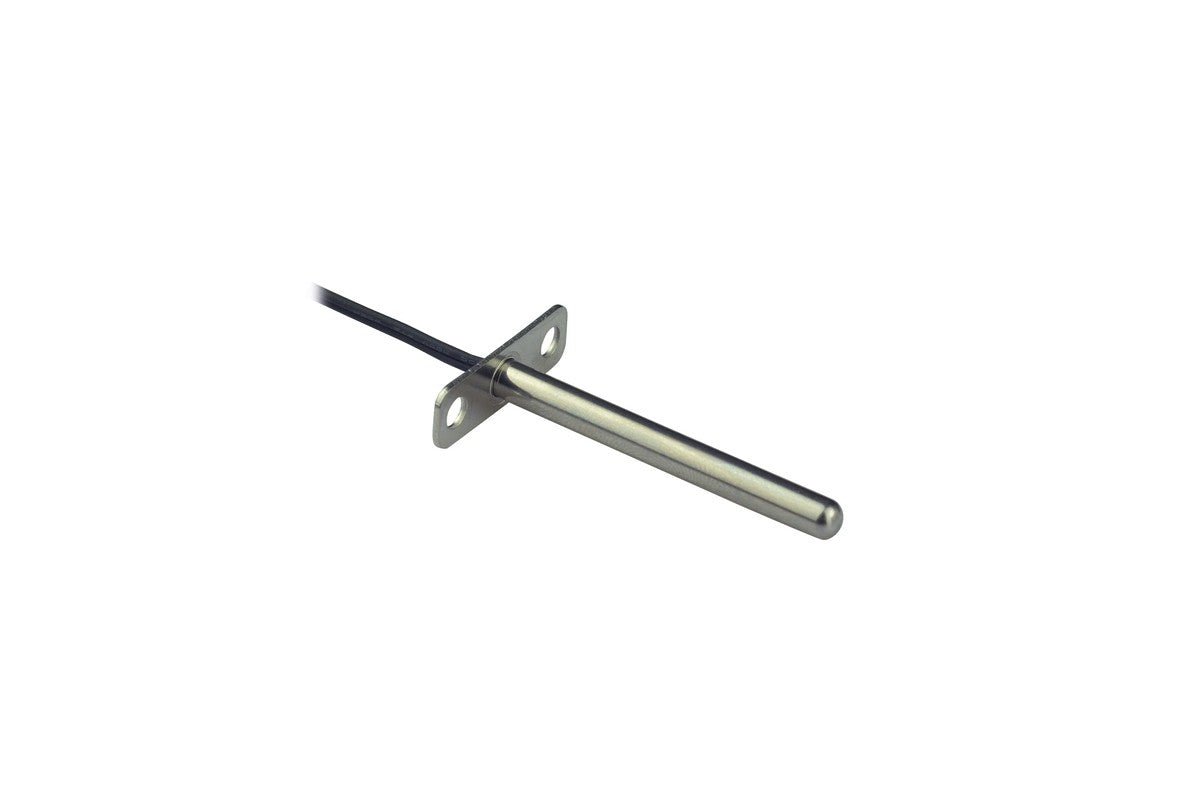

Temperature sensor for water dispenser, water pot ,dehumidifier

FERTURES

• Adopted high temperature resistance, high accuracy component, fast response;
• SUS304 steel stainless housing, contact with cold or heated water without oxidation;
• Housing length and size is optional, suitable for different product;
• Excellent housing sealing performance;

NOTES

• Cable length can be designed per customer’s requirement cable length should be ≥40mm
• The insulation tube can be installed as per customer’s requirement
• Housing size(L1≥25,D≥4.0) can be designed per customer’s actual requirement
• The housing needs to be molded

Specification

• Working temperature range: -30℃~+105℃ or -30℃+125℃ or -30℃~+150℃
• Withstanding voltage:AC1200V~AC2000V,60S
• Insulation:DC500VMin.100MΩ,60S
• Thermal time constant:τ（63.2%）≦20Sec
