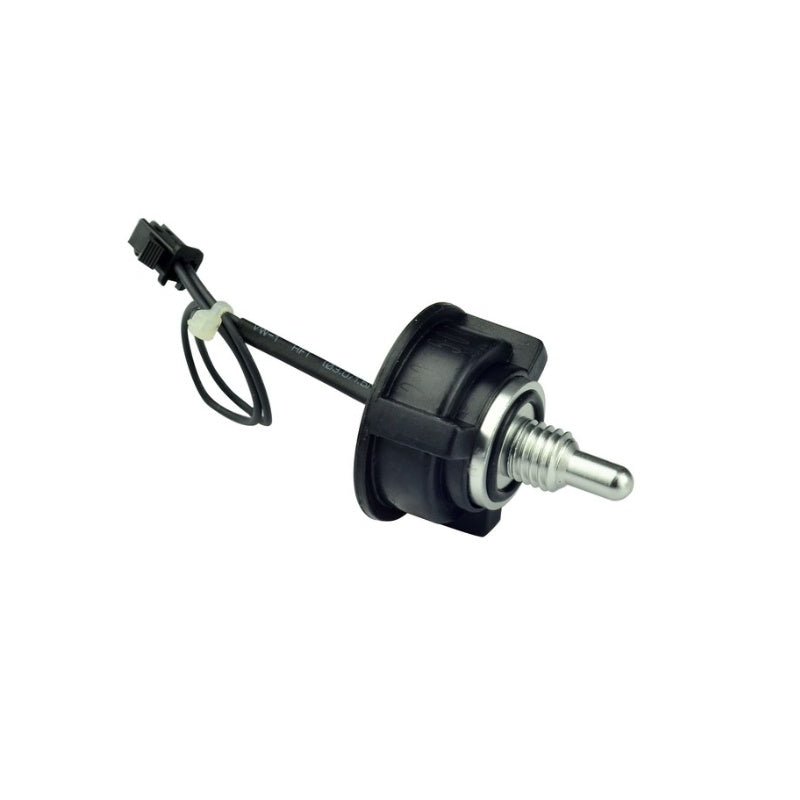

Temperature sensor for Electric pressure cooker

FERTURES

• Sealing with high accuracy component ,stable performance;
• Food grade metal housing, conform to national standards;
• Various color ,shape ,size optional, match different products’ installation;
• Stable work at high temperature and high pressure status, working life live up to national standards.

NOTES

• Customization for cable specification is available according to customers’ requirement(L2≥50mm,L3≥50mm)
• Insulation sleeve can be installed according to customers’ requirement
• The size of sensor housing(D≥5.0,L≥30) can be designed according to customers’ actual requirement
• L3 is ground line, can be canceled according to customers’ requirement

PRODUCT CHARCHTERISTIC DESCPRITION

• Working temperature:-30℃～+150℃ or -30℃～+200℃
• Withstanding voltage:AC1500V～AC2500V，60S
• Insulation:DC500V Min.100MΩ,60S
• Thermal response time:τ(63.2%)≦30Sec
