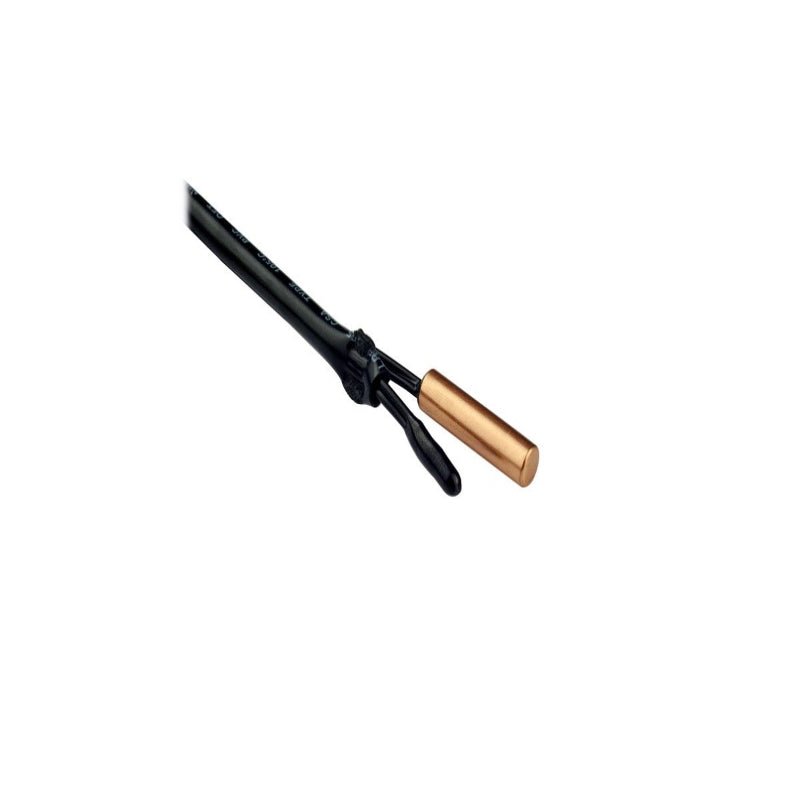

Temperature sensor for air-conditioner

FERTURES

• Adopted high accuracy, high stability component sealing, small measurement range;
• Stable working at moisture status after special water resistance and moisture resistance treatment;
• Housing size and material is optional ,match for different installation;
• Cable length and specification is optional;

NOTES

• Cable length can be designed according to customer's requirement ,cable length need be ≥40mm
• The insulation tube can be installed according to customer's requirement
• Temperature sensing housing size（D1≥3mm，L1≥10mm，D2≥3mm，L2≥10mm）Can be designed according to  customer's requirement

Specification

• Working temperature range:-30℃~+105℃ or -30℃+125℃or30℃+150℃
• Withstanding voltage : AC1000V~AC2000V,60S
• Insulation:DC500VMin.100MΩ,60S
• Thermal time constant:τ（63.2%）≦25Sec
