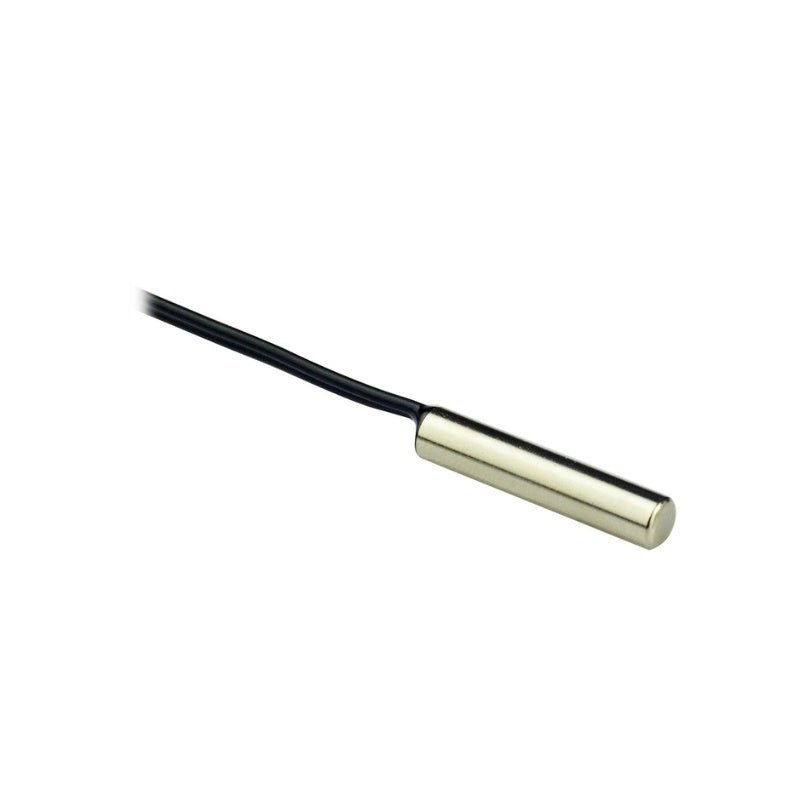

Temperature sensor for A/C system, fish tank and aquarium

Temperature sensor for A/C system, fish tank and aquarium

ask for a quote below

FERTURES

  • Adopted high accuracy, high stability component sealing, small measurement range;
  • Stable working at moisture status after special water resistance and moisture resistance treatment;
  • Housing size and material is optional ,match for different installation;
  • Cable length and specification is optional；


NOTES

  • Cable length can be designed according to customer's requirement ,cable length need be ≥40mm
  • The insulation tube can be installed according to customer's requirement
  • Temperature sensing housing size(L≧10mm，D≧3.0mm）can be designed according to customer's requirement


Specification

  • Working temperature range:-30℃~+105℃ or -30℃+125℃ or -30℃~+200℃
  • Withstanding voltage :AC1200V~AC2000V,60S
  • Insulation:DC500VMin.100MΩ,60S
  • Thermal response time:ｔ（63.2%）≦25Sec
