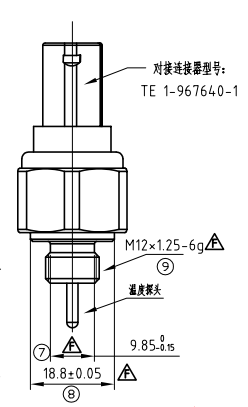

TEMPERATURE-PRESSURE (PT) COMBO SENSOR

Implement monitoring of the pressure and temperature signals of engine oil and refrigerant. Product has good reliability, long service life and suitable to work under the bad environment in the car system.

Specifications

• Operating pressure range: 0~3.6Mpa (range is adjustable)
• Accuracy: ±1.0%F.S.( Linearity , Hysteresis , Repeatability )
• Total error band:±1.5%F.S.( -40℃~+135℃ )
• other high-precision versions are available
• Operating temperature: -40℃~+135℃
• Storage temperature: -40℃~+150°C
• Protect pressure:5.4Mpa
• Burst pressure: 10Mpa
• Operating medium: Engine oil, POE oil, refrigerant (R134a, R410a, R1234ze, R1233zd, R515b etc)
• Life cycle: 3 million cycles
• Vibrating:13g ( 100~400Hz )
• Ingress Protection : IP65
• Supply voltage:5.0士0.25VDC
• Output voltage: 0.5~4.5VDC ( Can be adjusted within 5VDC )
• supply current: 10mA (Maximum)
• Loat impedance: 10KQ ( Typical )
• Output response time:3ms
• overvoltage protection: 40VDC
• Reverse voltage protection: -40VDC
• Short-circuit protection: Yes
• EMC withstand ( 1MHz——400MHz ) :100V/m
• ESD withstand:15KV
