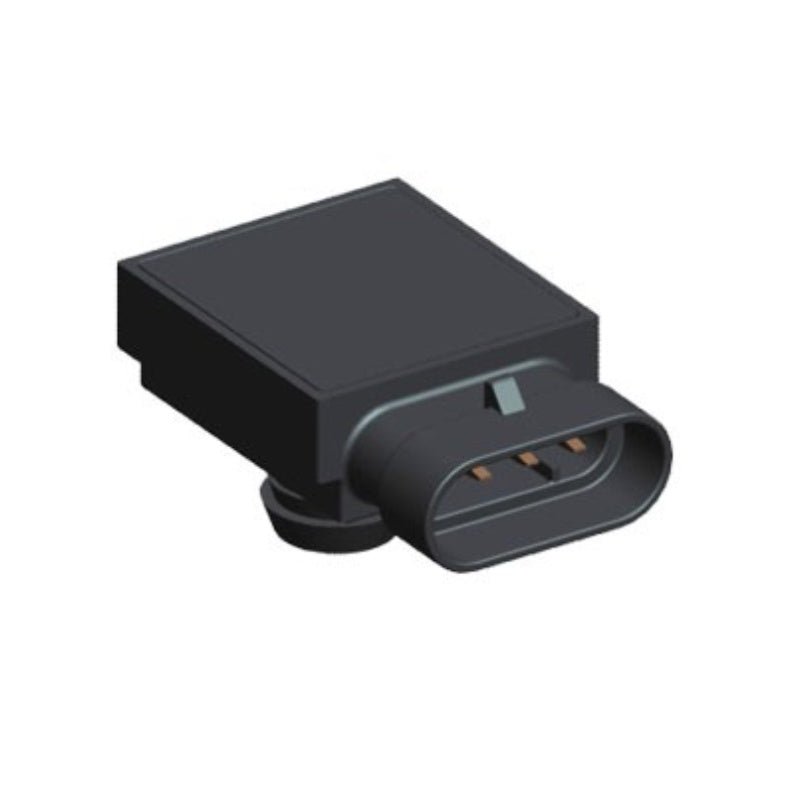

electric vehicle vacuum MAP pressure sensor

This product is made with advanced micro-electromechanical principle. The core technology is MEMS pressure sensor chip based on piezoresistive effect and high-performance signal conditioning AISC chip. It has excellent quality and recision package. It uses mature and reliable calibration, compensation and protection technology to respond. Fast, reliable, and stable, it is a cost-effective sensor product. It can fully meet the requirements of the electric vehicle vacuum boosting system.

Specification

• Supply voltage: 6~20V
• Vacuum pump starting pressure: -45±2.5 Kpa (range adjustable)
• Vacuum pump stop pressure: -75±2.5 Kpa (range adjustable)
• Operating temperature: -30°C-+125°C
• Storage temperature: -40°C-+130°C
• Maximum current resistance: 10A
• Low vacuum pressure protection: Yes
• Over current protection: Yes
• Continuous working time: 5min
• Vibration: 10g (50Hz-2000Hz)
• Protection level: Ip66
• Short circuit protection: Yes
• ESD standard: PIN needle air discharge ± 8KV
•                          housing air discharge ±16KV
• EMC standard: ISO11452-5
• (512MHz-1GHz) 50V/m
• (1MHz-512MHz) 100V/m
