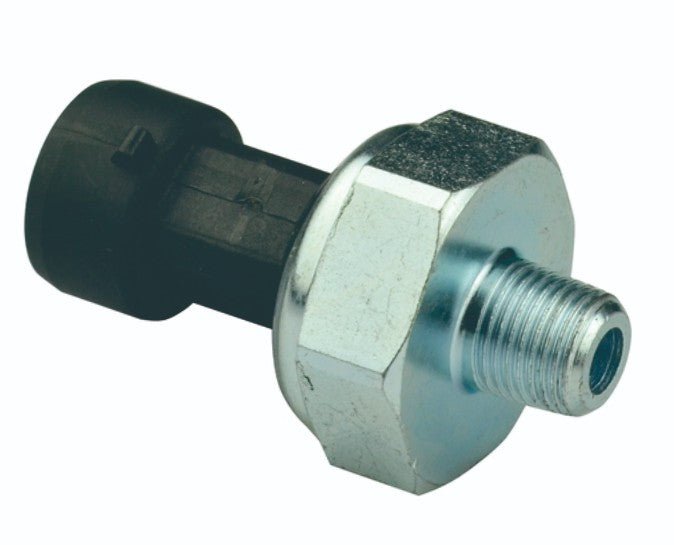

ENGINE OIL PRESSURE SENSOR

Measurement of the engine oil pressure, output to ECU, and then to the oil pressure gauge shows; the engine oil pressure is too low, the ECU will alarm and take control measures to protect the engine. High precision measurement, make the engine ECU can realize accurate measurement and control oil pressure; Good reliability and long service life and suitable to work under the bad environment in the car system Good reliability and long service life and suitable to work under the bad environment in the car system; Ceramic capacitor structure, good compatibility of medium in the whole temperature range and reliable work.

Specification

• Operating pressure range:0~1Mpa(range is adjustable)
• Accuracy: ±1.0%F.S.(Linearity,Hysteresis,Repeatability,Calibration)
• Total error band: 土3.0%F.S.(-40℃~+150℃)
• other high-precision versions are available
• Operating temperature: -40℃~+150℃
• Storage temperature: -40°C~+150℃
• Protect pressure:1.5Mpa
• Burst pressure: 2.0Mpa
• perating medium:Engine oil
• Life cycle: 3 million cycles
• vibrating:13g(100~400Hz)
• Ingress Protection:IP65
• Supply voltage:5.0±0.25VDC
• output voltage: 0.5~4.5vDC (Can be adjusted within 5vDc)
• Supply current: 10mA (Maximum)
• Loat impedance: 10KQ(Typical)
• Output response time:3mS
• Overvoltage protection: 40VDC
• Reverse voltage protection:-40VDC
• short-circuit protection: Yes
• EMC withstand(1MHz—400MHz):100v/m
• ESD withstand:15KV
