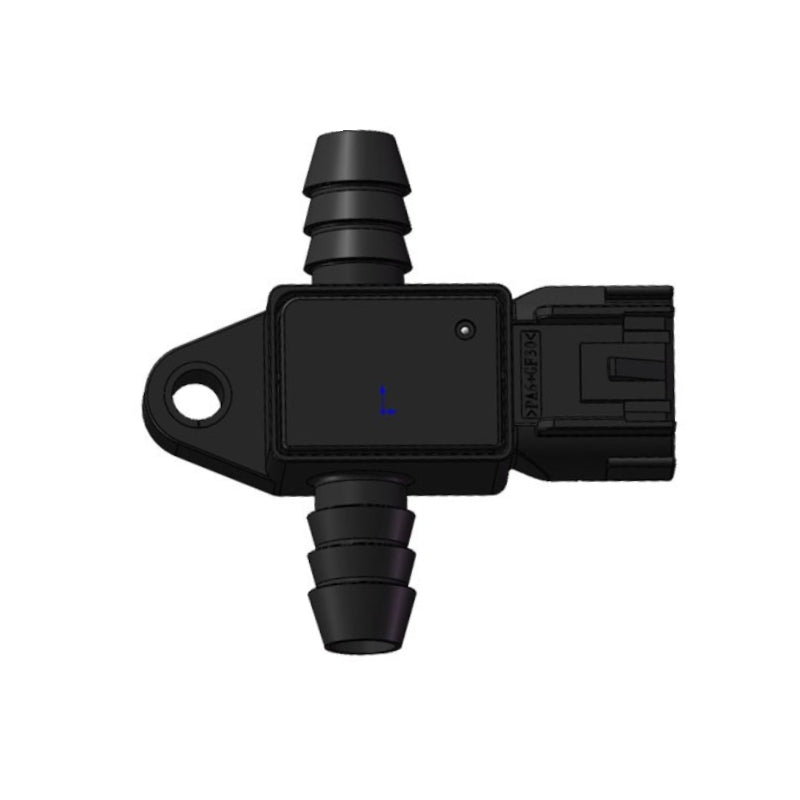

Desorption pressure sensor

This product is made with advanced micro-electromechanical principle. The core technology is MEMS pressure sensor chip based on piezoresistive effect and high-performance signal conditioning AISC chip. It has excellent quality and precision package. It uses mature and reliable calibration, compensation

and protection technology to respond. Fast, reliable, and stable, it is a cost-effective sensor product. The desorption pressure sensor can monitor the normal operation of the canister desorption system in real time, improve the desorption of the fuel vapor system, and reduce the emission standard.

Specification

• Working pressure: 1.25-3.75KPa
• Accuracy: ±1.5% F.S (linearity, hysteresis, repeatability)
• Full error band: ±3% F.S. (-40°C-+125°C)
• Operating temperature: -40°C-+125°C
• Storage temperature: -40°C-+150°C
• Protection pressure: over double working pressure
• Burst pressure: over triple working pressure
• Working medium: air
• Service life: more than 5 million times
• Vibration: 10g (50Hz-2000Hz)
• Protection level: Ip66
• Power supply voltage: 5V±0.25V
• Output voltage: 0.5-4.5V (range adjustable)
• Supply current: <10mA
• Response time: <10ms
• Overvoltage voltage: 40VDC
• Reverse voltage: -40VDC
• Short circuit protection: Yes
• ESD standard: PIN needle air discharge ± 8KV
•                 housing air discharge ±16KV
• EMC standard: ISO11452-5
• (512MHz-1GHz) 50V/m
• (1MHz-512MHz) 100V/m
