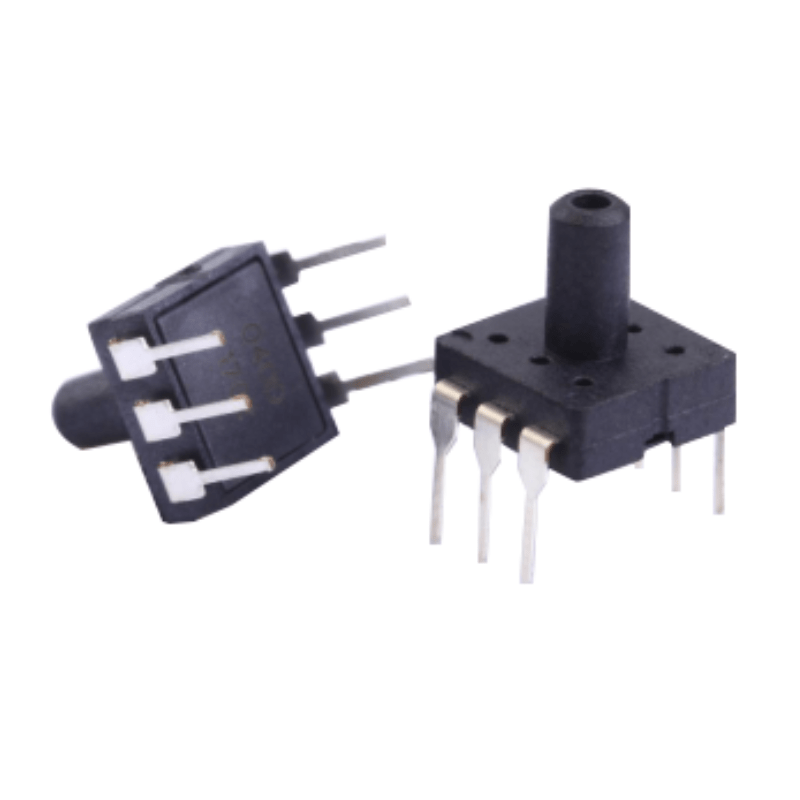

Consumer Electronics pressure sensor

This product is made with advanced micro-electromechanical principle. The core technology is MEMS pressure sensor chip based on piezoresistive effect and high-performance signal conditioning AISC chip. It has excellent quality and precision package. It uses mature and reliable calibration, compensation

and protection technology to respond. Fast, reliable, and stable, it is a cost-effective sensor product that has a good measurement function for Coffee machine intake measurement.

Specification

• Working pressure: -100～7kPaG…200kPaG
• Accuracy: ±1.5% F.S (linearity, hysteresis, repeatability)
• Full error band: ±3% F.S. (-30°C-+100°C)
• Operating temperature: -30°C-+100°C
• Storage temperature: -30°C-+120°C
• Protection pressure: over double working pressure
• Burst pressure: over triple working pressure
• Working medium: air
• Service life: more than 5 million times
• Protection level: Ip66
• Power supply voltage: ≤10Vdc
• Output voltage: 0.5-4.5V (range adjustable)
• Supply current: <3mA
• Response time: <10ms
• Orientation: Deviate 90° from any direction,
•                        zero change ≤ 0.05%FS
• Shock: No change at 10gRMS, (20～2000)Hz condition
• Impact: 100g,11ms
• Medium Compatibility:
• Pressure side: air or gas compatible with silicone, silicone
• glue, epoxy glue or PPSReference
• side: dry air and non-corrosive gas compatible with PPS,
• silicon and silicone glue or epoxy, gold, aluminum and silver.
• Short circuit protection: Yes
